When buyers ask how many inches a 4 space case measures, they usually need to know the precise vertical height or the internal depth required to house specific equipment. The industry baseline relies on the universally recognized EIA-310 standard. Under this framework, 1 Rack Unit (U or RU) equals exactly 1.75 inches. Selecting the wrong dimensions can severely disrupt your workflow. Incorrect sizing leads to returned products, overheating gear, or protective cases failing strict airline transport requirements. A minor measurement error might mean your heavy power amplifier protrudes past the rear rails. This guide breaks down vertical height calculations, depth categories, and structural material choices. We outline practical best practices to help you make an informed procurement decision tailored directly to your technical requirements.
Vertical Height: A 4 space (4U) rack case has an internal mounting height of exactly 7.00 inches (4 x 1.75").
Depth Variability: While height is standardized, depth is not. Cases range from Shallow (8"–10") to Medium (12") and Standard/Deep (16"–20"+).
Material Selection: Lightweight ABS/Polyethylene ("plastic rack case") models are ideal for local transport and lower weight limits (30–40 lbs), while 3/8" plywood ATA cases are mandatory for heavy amps and freight shipping.
Dimensional Traps: Always differentiate between internal rail-to-rail depth, external physical dimensions (which include hardware like ball corners), and shipping dimensions.
The entire professional audio and IT equipment industry operates on a universal metric defined by the Electronic Industries Alliance (EIA). The EIA-310 standard establishes that a single rack unit measures exactly 1.75 inches (44.45 mm) vertically. You calculate the 4 space standard simply by multiplying this base number. Four units equate to exactly 7.00 inches of vertical mounting room.
However, actual equipment front panels measure slightly less than this full theoretical height. Manufacturers apply a standard clearance formula to prevent metal-on-metal binding during installation. This gap ensures easy sliding when stacking multiple units inside a single rack case. Typically, an equipment panel requires about 1/32 of an inch of clearance. Therefore, a true 4U device panel sits just under 7 inches tall, allowing it to drop into the rails without scraping the adjacent gear.
You must also understand the mounting hardware realities of modern rail systems. Older racks utilized pre-tapped threaded holes, usually in 10-32 or 12-24 thread sizes. If you accidentally stripped a thread on these fixed rails, you ruined the entire mounting column. Today, the industry has shifted toward universal square holes. These square cutouts utilize replaceable cage nuts. If a screw cross-threads, you discard the damaged cage nut and pop in a new one. This modular approach significantly extends the lifespan of your enclosure.
Rack Units (U) | Exact Standard Height (Inches) | Typical Equipment Panel Height (Inches) |
|---|---|---|
1U | 1.75" | 1.71" |
2U | 3.50" | 3.46" |
3U | 5.25" | 5.21" |
4U | 7.00" | 6.96" |
Depth acts as the primary variable when you evaluate different rack cases. Your specific hardware dictates this requirement, not the U-space. A 4U enclosure can look entirely different depending on its internal depth class. Always measure your deepest piece of equipment before you browse product catalogs.
Shallow cases cater specifically to compact electronics. They usually provide 8 to 10 inches of internal space between the front and rear rails. We highly recommend these units for wireless microphone receivers, compact audio interfaces, and digital preamps. They save significant footprint space during transport. However, they carry strict limitations. You cannot house standard power amplifiers or deep network switches in a shallow enclosure.
Medium depth options hit the sweet spot for many audio engineers and IT technicians. Offering 12 to 14 inches of clearance, these enclosures handle mid-sized outboard gear easily. They work exceptionally well for effects processors, compact digital snakes, and standard power conditioners. A medium depth unit offers enough space to leave smaller cables permanently patched while keeping the overall box manageable for one person to carry.
Deep cases represent the traditional standard for heavy touring rigs and enterprise deployments. They offer 16 to 20 inches of internal clearance. You need this depth for full-size power amplifiers, server-grade hardware, and complex guitar systems like AxeFX setups. When utilizing a deep case, you must prioritize cable allowance. Always leave 2 to 3 inches of rear clearance behind your deepest component. This extra space provides vital cable relief and accommodates bulky power cord housings without crushing them against the rear lid.
Selecting the right material dictates your carrying capacity, transit durability, and overall portability. You must match the case construction directly to your travel environment.

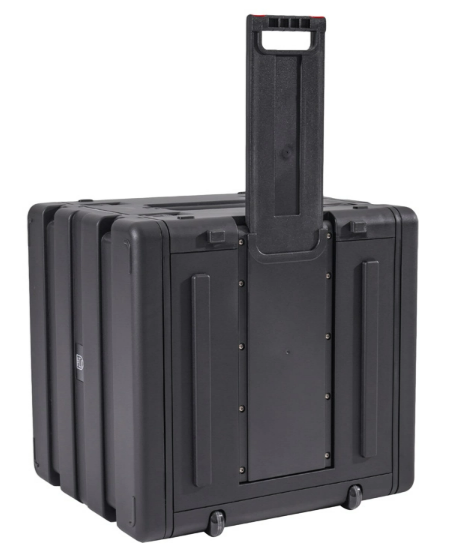

A plastic rack case typically features roto-molded linear low-density polyethylene (LLDPE) or hard ABS plastic joined by aluminum valances. Manufacturers favor this construction because it is incredibly lightweight and highly portable. Many models feature interlocking molded stacking bars. These exterior grooves allow you to safely stack multiple cases vertically without them sliding off each other. High-end plastic variants occasionally offer gasket-sealed lids to provide strong water and dust resistance.
Despite their advantages, plastic units carry strict weight limits. We find them ideal for total payloads under 30 to 40 pounds. If you overload a plastic shell, the internal rails may warp, or the carrying handles may detach under extreme stress.
When you handle heavy amplifiers or ship gear via commercial freight, you need heavy-duty wooden construction. These cases utilize 3/8-inch Baltic birch or standard plywood covered in a tough PVC laminate. Builders reinforce the edges with tongue-and-groove metal railing and cap the corners with heavy-duty steel ball corners.
The primary advantage of wooden construction is its compliance with Air Transport Association (ATA) specifications. Built for maximum impact resistance, these units easily survive brutal freight handling and support massive payloads. The main drawback is the high tare weight. A 4U wooden box weighs significantly more than its plastic counterpart, often requiring optional caster wheels or dolly plates for basic mobility.
Commercial air transit demands specialized protection. Flypack solutions utilize a hybrid nested design to survive baggage handlers. A typical flypack features a removable inner wooden rack suspended by CNC-cut shock foam. An industrial Pelican-style outer shell encases the entire system. This isolated suspension protects highly sensitive processors from harsh drops and vibrations. While expensive, flypacks offer the ultimate peace of mind for high-value commercial touring.
Feature Comparison | Plastic (ABS/LLDPE) | ATA Plywood (3/8") | Flypack (Nested) |
|---|---|---|---|
Primary Use Case | Local transport, lightweight gear | Heavy amplifiers, freight shipping | Commercial air travel, sensitive gear |
Weight Capacity | Up to 40 lbs | 100+ lbs | Moderate to Heavy (Shock isolated) |
Impact Resistance | Moderate (Prone to flexing) | High (Rigid structure) | Extreme (Foam suspended) |
Mobility | Excellent (Light tare weight) | Poor (Often requires casters) | Good (Usually features pull handles) |
Packing equipment tightly into enclosed spaces creates significant operational risk. Poor airflow leads directly to thermal throttling and hardware failure. You must treat your enclosure as a complete aerodynamic system.
Most professional rack gear intakes cold air from the front panel and exhausts hot air from the rear. You must ensure this directional flow remains unobstructed. Never place rear-exhaust equipment facing forward. Always group equipment so internal fans push air in a uniform direction. This prevents isolated hotspots from forming between stacked processors.
Failing to install blanking panels stands out as a common and dangerous setup error. Suppose you mount only 2U of gear in a 4 space case. Leaving the remaining two spaces open ruins your thermal efficiency. Hot exhaust air expelled from the back of the gear will loop forward through the empty U-spaces and re-enter the front intake vents. You must cover all empty slots with solid or vented blank panels. These panels block the recirculation loop, preventing hot and cold air mixing and maintaining proper aerodynamic efficiency.

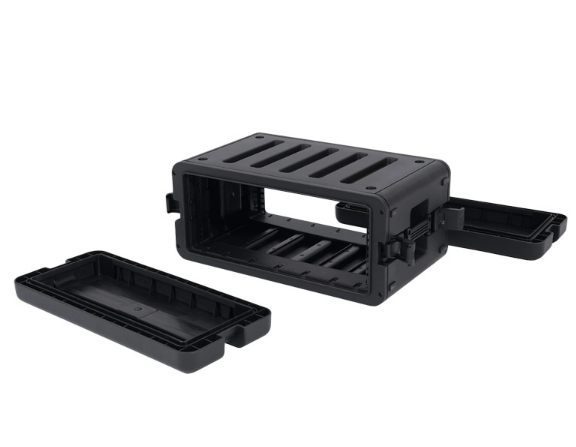

Professional deployments require rapid physical access. Confirm your prospective case features fully removable front and rear doors. Operating high-draw amplifiers with the rear door attached severely chokes the exhaust fans. Removing both doors facilitates optimal live-show cooling and allows your technicians to execute rapid cable patching during emergencies.
Evaluating vendor specifications requires a disciplined approach. Use the following structured checklist to separate professional enclosures from consumer-grade alternatives.
Internal vs. External Dimensions: Never confuse the two measurements. Ensure the stated external dimensions account for recessed latches, rubber feet, and steel ball corners. You need accurate exterior numbers to confirm the enclosure will fit into your transport vehicles or trunk space.
Product vs. Shipping Dimensions: B2B e-commerce sites often display shipping dimensions prominently. Warn your logistics team to check which dimension is listed. A box padded with two inches of shipping foam will skew your cargo measurements and cause logistical miscalculations.
Rail Adjustability: Determine if the internal mounting rails are fixed in place or adjustable. Adjustable rails slide forward and backward along a side track. This movement allows you to push the rails back slightly, providing deeper clearance for protruding front-panel knobs and switches.
Hardware Durability: Scrutinize the metal fittings. Look for recessed butterfly latches that sit flush against the wood. Insist on heavy spring-loaded handles wrapped in rubber. Ensure all rivets and corner braces utilize rust-resistant metal treatments.
Warranty & Support: Read the fine print on manufacturer guarantees. Factor in lifetime warranties, which remain common among high-end roto-molded case manufacturers. A lifetime replacement guarantee justifies a higher upfront cost by ensuring immediate part replacements if a latch or handle snaps.
While every 4 space rack provides exactly 7 inches of vertical mounting room, your buying decision hinges entirely on equipment depth, transit conditions, and total weight capacity. You cannot rely on vertical space alone to guarantee a proper fit. Measure the deepest piece of equipment you own, plug in all necessary power cables, and take a final depth measurement before finalizing any purchase.
By understanding the critical differences between shallow designs and standard depth models, you avoid frustrating returns and installation delays. Match your materials to your environment. Choose rugged wooden ATA construction for brutal touring schedules, or deploy lightweight plastic options for regional gigs where payload weight matters most. Implement proper blanking panels for airflow management, and your hardware will operate flawlessly for years to come.
A: There is no difference. Rack Unit (U) and RU are completely interchangeable terms used across the audio and IT industries. Both terms represent the exact same 1.75-inch standard vertical measurement defined by the EIA-310 specification.
A: No. Standard power amplifiers typically require 16 to 20 inches of internal depth to house their heavy transformers and cooling fans. They will physically protrude out the back of an 8 to 10-inch shallow case, making it impossible to attach the rear lid.
A: Half-rack configurations refer to devices measuring 9.5 inches wide, which is exactly half the standard 19-inch rack width. You can easily mount two half-rack devices side-by-side in a standard 1U space by utilizing a specialized joining tray.
A: Most consumer and mid-tier cases include basic rack screws and plastic washers in the box. However, enterprise-grade deployments utilizing square holes usually require you to source specific cage nuts and matching metric screws separately.
