Transitioning from standalone consumer gear to professional audio, AV, or IT deployments is a massive leap. You suddenly face the challenge of moving multiple fragile components across varied environments. This shift requires standardizing how you transport, power, and protect your equipment. A standard transport box simply cannot handle these demands. A rack case isn't just a storage box; it operates as a highly engineered micro-environment. Engineers designed it to mitigate physical shock, manage intense thermal output, and streamline complex cable routing. Without proper housing, high-value electronics fail under transit stress.
This guide breaks down the physical mechanics and structural standards of how a rack case works. We will provide the exact technical criteria you need to evaluate different options. You will learn how to shortlist the perfect housing to keep your vital equipment safe, functional, and organized.
Standardization: Professional rack cases operate on the EIA-310-D standard, utilizing a universal 19-inch width and standardized vertical increments called Rack Units (1U = 1.75 inches).
Shock Mitigation: High-end models utilize internal floating frames and sway spaces to isolate fragile components from kinetic impact and low-frequency vibrations.
Material Selection: The choice between traditional laminated plywood and a molded plastic rack case dictates the balance between ATA-rated transit durability and everyday portability.
Thermal Management: Proper operation relies on internal airflow manipulation, utilizing blank panels and strategic spacing to prevent equipment thermal throttling.
You cannot mix and match professional electronics randomly. Industry manufacturers rely on the EIA-310-D standard to ensure modularity. This universal standard dictates a 19-inch width across all interior mounting rails. Equipment brackets perfectly interface with the case's inner skeleton. Because of this rule, you can mount IT servers, broadcast video switchers, and audio amplifiers inside the exact same enclosure. The 19-inch standard removes the guesswork from equipment integration.
Vertical space utilizes a highly specific measurement system called Rack Units (U). One Rack Unit equals exactly 1.75 inches. When you buy gear, manufacturers label it as 1U, 2U, or 3U. This tells you exactly how much vertical height it requires.
Interestingly, the equipment faceplate is slightly shorter than the mathematical multiple. Engineers design gear with a crucial 0.031-inch gap tolerance. This tiny gap serves a massive mechanical purpose. It prevents adjacent metal faceplates from grinding against each other. You avoid friction and binding during installation.
How you secure your gear matters just as much as the case dimensions. Hardware choices directly impact structural integrity over time.
Threaded vs. Square Holes
Older designs featured permanently tapped threaded rails. These present a catastrophic point of failure. If you cross-thread a screw, you permanently strip the rail. You cannot easily fix this in the field.
Modern deployments heavily favor square holes. You insert replaceable cage nuts into these square cutouts. If a thread strips during a frantic setup, you simply pop out the ruined cage nut. You snap a new one in. This modular approach saves entire rail systems from the scrap heap.
Structural Support
Many users make the mistake of securing heavy equipment only by the front mounting ears. This creates extreme bending stress. Gravity pulls the rear of the device downward. Over time, this lever-action causes metal fatigue on the front faceplate.
For shallow, lightweight gear, front-mounting works fine. For deep IT servers or heavy power amplifiers, you must use 4-post internal rails. You secure the device at both the front and the rear. This completely eliminates the bending stress and secures the chassis.
Rail Type | Mechanics | Maintenance Factor |
|---|---|---|
Tapped Threaded Holes | Pre-cut threads directly in the metal rail. | High Risk. A stripped thread ruins the entire rail segment. |
Square Holes (Cage Nuts) | Blank square cutouts accept snap-in threaded nuts. | Low Risk. Stripped nuts are instantly replaceable in the field. |
Moving sensitive electronics exposes them to severe physical trauma. Potholes vibrate truck suspensions. Airport baggage handlers drop equipment off loading belts. Stages rumble with low-frequency subwoofer vibrations. This kinetic energy transfers directly through rigid walls into your equipment.
Unprotected gear suffers quickly. Solder joints crack under repeated stress. Spinning hard drives suffer head crashes. Heavy transformers tear away from internal circuit boards. You must manage this kinetic threat.
You can choose between two main structural approaches to manage physical impact.
Rigid/Standard Cases: These rely solely on the hard exterior shell and high-density foam lining. They transfer more impact energy to the center. They work perfectly well for solid-state gear, lightweight digital mixers, or setups transported exclusively by careful end-users. Everyday rack cases often utilize this rigid design.
Internal Suspension (Shock Racks): This engineered design functions as a "case within a case." An inner steel structural frame holds the equipment. This frame floats on elastomeric shock mounts or heavy-duty coiled springs. Engineers intentionally leave a 1-to-2-inch empty sway space around the inner frame. When the outer shell takes a massive hit, the inner frame shifts and bounces. The elastomers absorb the destructive G-forces before they reach the fragile electronics.
How do you know when to upgrade to a shock-mounted system? Shock mounting becomes a strict business requirement under certain conditions. You must use them for touring server racks handling critical data. You need them for vintage tube amplifiers containing fragile glass vacuums. They are mandatory if you hand your gear over to third-party shipping logistics. When you cannot control the transport environment, you must control the impact isolation.
Traditional touring gear relies heavily on laminated plywood. Manufacturers build these using 3/8-inch or 1/2-inch plywood. They bond ABS plastic laminates to the wood for scratch resistance.
To reinforce the structure, they frame every edge with thick aluminum extrusions. They cap the vulnerable corners with heavy steel ball corners. This construction delivers maximum crush resistance. It survives commercial air freight pallets and relentless heavy touring. However, this level of protection comes with a massive weight penalty.

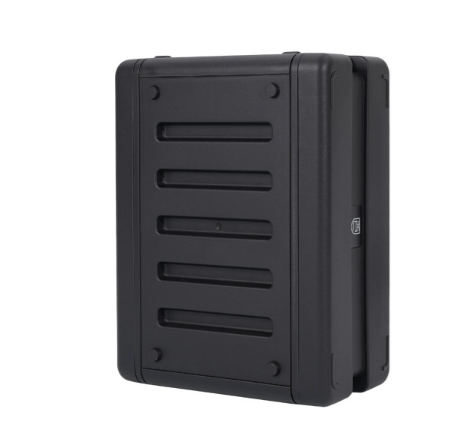

Modern engineering provides a brilliant alternative. Manufacturers utilize injection-molded or rotational-molded polymers to create a seamless shell. A plastic rack case sheds significant weight while remaining incredibly durable.
These polymers offer excellent weather resistance. They do not absorb moisture or warp like exposed wood can. We highly recommend this material for local transport, corporate AV events, and mobile Prosumer/HomeLab setups. When your primary constraint is lifting weight, molded polyethylene becomes the optimal choice.
The exterior hardware defines the user experience and transit safety. High-quality designs utilize recessed butterfly twist latches. They embed spring-loaded handles deep into dish cutouts. Many models include integrated casters built flush into the bottom panel.
This recessing ensures absolutely nothing protrudes beyond the case's outer dimensions. When you slide the case into a tightly packed truck, there are no exposed latches to catch and shear off. Flush hardware guarantees transit survivability.
Material Type | Primary Advantage | Ideal Use Case |
|---|---|---|
Laminated Plywood | Extreme crush resistance and rigidity. | Commercial air freight, heavy touring, third-party logistics. |
Molded Polyethylene | Lightweight, weather-resistant, dent-proof. | Local transport, one-person lifting, corporate AV, HomeLabs. |
You cannot ignore the laws of physics. Operating electronics generate massive amounts of thermal energy. Heat naturally rises. If you trap this hot air exhaust inside an unmanaged enclosure, you create a localized micro-climate. The ambient temperature skyrockets.
When components run too hot, they suffer from thermal throttling. Processors slow down to prevent melting. Amplifiers trip their thermal protection circuits and shut off mid-performance. Unmanaged heat drastically reduces the total lifespan of your equipment.
You must actively manipulate the internal airflow to keep equipment alive. This requires strategic planning.
The Role of Blank Panels: Novices think blanking panels are just cosmetic filler. They are not. If you leave open gaps between servers, hot exhaust from the rear sneaks back around to the front. The fans suck this hot air right back into the intake valves. Blank panels block this recirculation loop. They force cold air in the front and push hot air out the back.
Convection vs. Active Cooling: You must evaluate your total wattage. Passive vents rely on natural convection. Heat rises and escapes through top louvers. This works for low-power digital gear. If you run massive server arrays, you need active cooling. You must install rack-mounted exhaust fans. These actively pull hot air out of the top or rear doors, forcing fresh air through the front intakes.
Always follow the core implementation rule for heat management. High-heat components, like analog power amplifiers or heavy power supplies, require at least 1U of empty space directly above them. If you do not deploy active cooling fans, this blank gap provides the necessary thermal runway for radiant heat to escape.
How you load your gear determines how safe it is to move. You must understand the mechanics of load balancing. The center of gravity principle dictates that all heavy items go at the absolute bottom. You mount massive UPS battery backups and heavy power amplifiers on the lowest available rails.
You install lightweight network switches, wireless microphone receivers, and patch bays at the top. If you ignore this rule, you create a top-heavy nightmare. Top-heavy enclosures become severe tipping hazards. They easily roll over during load-in over uneven pavement, risking severe injury and equipment destruction.
Proper enclosures streamline your workflow through intelligent spacing.
Recessed Rails: Manufacturers often recess the internal equipment rails a few inches back from the front edge. This empty space protects front-facing knobs, delicate switches, and plugged-in patch cables. When you clamp the front lid on, it does not crush your connections.
Deep Volume Depth: Deep configurations provide essential rear volume. You gain the necessary space to permanently mount power conditioners and route structured cable looms. You can leave most internal connections patched during transit. This drastically reduces your setup and tear-down time at every venue.
A simple mechanical oversight can ruin your equipment's resale value. When you drive steel screws into aluminum faceplates, the twisting friction grinds away the paint and metal. Industry professionals call this damage "rack rash."
You prevent this mechanical damage by using nylon washers. You place a soft nylon washer behind every single steel screw. As you tighten the fastener, the nylon compresses. It absorbs the twisting friction and acts as a protective buffer. Your equipment faceplates remain pristine for years.
A professional enclosure works by uniting three distinct engineering principles. It enforces structural standardization through EIA-310-D rails. It provides physical isolation using advanced shock-mounting materials and heavy-duty shells. Finally, it controls the internal environment by managing crucial airflow and cable routing volume. When these mechanics align, your gear survives the harshest deployments.
Base your final purchasing decision on three operational realities. First, analyze your transport frequency to choose between heavy ATA wood and lightweight polymers. Second, evaluate equipment fragility to decide if you need rigid mounting or floating shock suspension. Third, calculate your total heat generation to plan your airflow routing.
As a next step, map out your total required Rack Units (U). Always add an extra 20% capacity to accommodate future expansion. Consult with a specialized case vendor to match your dimensions with the correct industry-standard housing.
A: ATA stands for Air Transport Association. Specifically, it refers to ATA Specification 300 Category 1. When an enclosure carries this rating, it guarantees the container can survive a minimum of 100 commercial airline shipments. The construction meets strict requirements for impact resistance, drop testing, and water deflection during rigorous air freight logistics.
A: Yes. Because both IT servers and professional audio gear adhere to the universal 19-inch width standard, they mount on the exact same rails. However, you must pay attention to depth. IT server chassis are usually much deeper than audio gear. You will need a deeper enclosure to accommodate the IT equipment properly.
A: These are specialized structural variations. A slam lid design features access doors that hinge and slide into the body, allowing for instant, toolless access without dealing with removable covers. A shallow version features reduced physical depth. Engineers optimize shallow cases for short-depth equipment like wireless microphone receivers or compact effects processors.
